TOP SPEED: 20 MPH
RANGE: 60 Miles
PAYLOAD CAPACITY: 440 Pounds
MOTOR POWER: 750W (1188 W Peak)
TURN SIGNALS: INTEGRATED LIGHTS

FEATURES:

The Abound LR is the answer to all your cargo conundrums! The 750W motor, long rear rack, and 440lb payload capacity make this the ultimate cargo carrier. Whether you're loading up the kids, your beach day essentials, or your most ambitious grocery haul, the Abound LR is ready to take on any challenge. With a gravity cast frame, adjustable quill stem, front suspension, and suspension seatpost, you can ride confidently and comfortably no matter what you're bringing along. With the addition of ACU technology, you'll rest assured knowing you can locate and control your bike from anywhere. The possibilities for what you can carry are endless, so load up and enjoy the ride with Abound LR.

  • BACKLIT LCD DISPLAY
  • FRONT SUSPENSION
  • TORQUE SENSOR
  • PEDAL ASSIST &/OR THROTTLE
  • DROPPER SEAT POST
  • FENDERS AND REAR RACK
  • STORAGE BAG
  • FOOTBOARDS
  • HUB MOTOR AND BATTERY
  • INTEGRATED LIGHTS WITH TURN SIGNAL FUNCTIONALITY

Aventon Abound LR Ebike

$1,999.00Price
Color
Quantity

  • General Info

    Model

    Abound LR Ebike

    Weight

    88lbs

    Total Weight Limit

    440 lbs

    Rider Height

    4'11" - 6'3"

    Ebike Class

    Class 2 Ebike

    Water Resistance

    IPX6

    Range

    Up to 60 miles

    Battery Safety Certifications

    Certified to UL 2271

    Safety Certifications

    UL and TUV Safety Certified
UL 2849

    Ideal Use

    Cargo & Utility

    Pedal Assist

    3 Levels (with Ride Tune Customization)

    Carry Capacity

    Carry Up To 2 Passengers

    Frameset

    Frame

    Gravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery

    Fork

    Threaded Steerer Tube for Quill Stem 15x110 spacing, 51mm travel, adjustable lockout black stanchions

    Rear Spacing

    175mm

    Fork Spacing

    110mm

    Frame Style

    Step-Through

    Wheelset

    Front Wheel

    Double Wall Aluminum, 20in, 36hole, 13g, 20x110 Thru Axle, Schrader Valve

    Rear Wheel

    Double Wall Aluminum, 20in, 36hole, 12g, Nutted Hub Drive Motor, Scharder Valve

    Tires

    20x3.0 Innova IA-2131 Urban Tire Refective Sidewalls

    Ebike System

    Motor

    Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)

    Motor Torque

    80Nm

    Display

    Aventon BC147

    Battery

    Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells

    Battery Weight

    8.7lbs

    Controller

    36V/33A

    Throttle

    Aventon LH Handlebar Mounted

    Sensors

    Double Sided Bottom Bracket Torque Sensor

    Charger

    36V Output: 42V/ 4A

    Charging time from 0% to 100%

    5 hours

    Lights

    Front and Rear Lights Integrated w/ Turn Signals

    Speed

    Class 2

    Brakes

    Front Brake

    Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire

    Rear Brake

    Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire

    Front Brake Rotor

    180mm 6 bolt

    Rear Brake Rotor

    203mm 6-bolt

    Drivetrain

    Rear Derailleur

    Shimano Altus RD-M310 8 Speed

    Shifter

    Shimano 8 Speed Trigger SL-M315-8R

    Chain

    7/8 speed 154L

    Cassette

    12-32T / 8 Speed Shimano CS HG200-8

    Chainring

    52 tooth

    Crank

    3pc, 165mm crank arm

    Bottom Bracket

    Square Taper, Sealed, Dual-Sided Torque Sensor

    Pedals

    9/16" Composite Platform

    Cockpit

    Saddle

    Aventon Saddle w/ grab handle by Selle Royal

    Seatpost

    Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel

    Seatpost Clamp

    34.9mm

    Handlebars

    BMX Style Aluminum 31.8mm, 720mm

    Grips

    Aventon Ergonomic Comfort lock on grips

    Headset

    H886HW Peilin 28.6mm * 56mm * 56mm H19.5mm 6pcs

    Included Accessories

    Fenders

    Included

    Rear Rack

    Included

    Rear Rack Weight Limit

    143 lbs

    Technical Overview

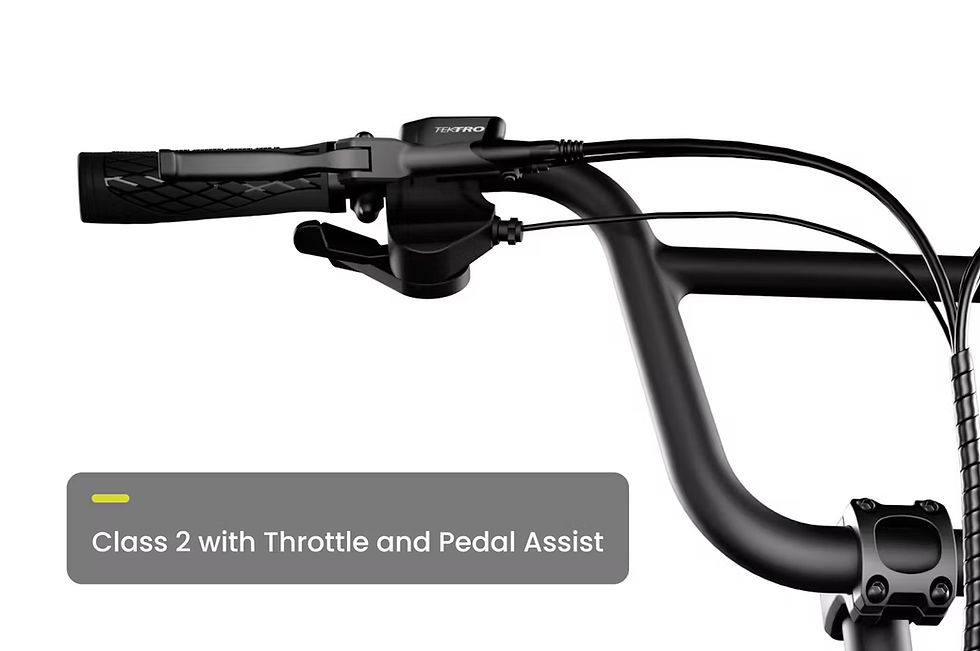

    The Abound LR ships as a Class II ebike, with pedal assist and throttle. The Abound will also operate with the throttle unplugged and removed, should you want to ride in an area that only allows Class I ebike or throttles are prohibited. Aventon ebikes are built to the IPX6-rated standard. An IPX6 rating means the bike is protected against high-pressure water streams from any angle. This provides strong water resistance, so you can confidently ride in heavy rain or through puddles and mud. However, IPX6 does not mean waterproof—Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or sprayer to clean your ebike, as pressurized water can still damage components. *Max range determined using PAS 1 on flat terrain with a rider weight of 160 lb.*
